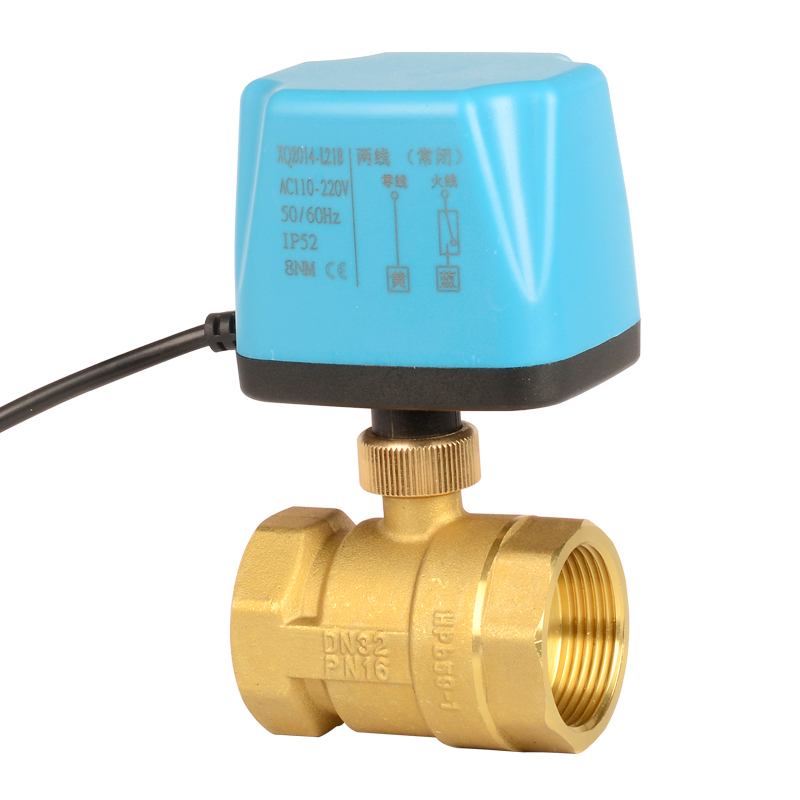

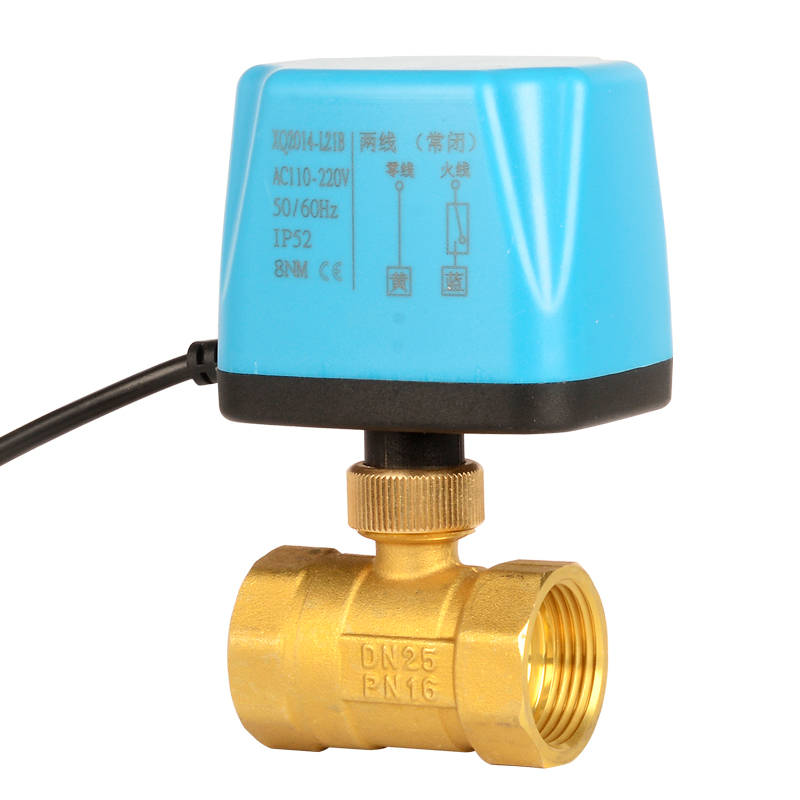

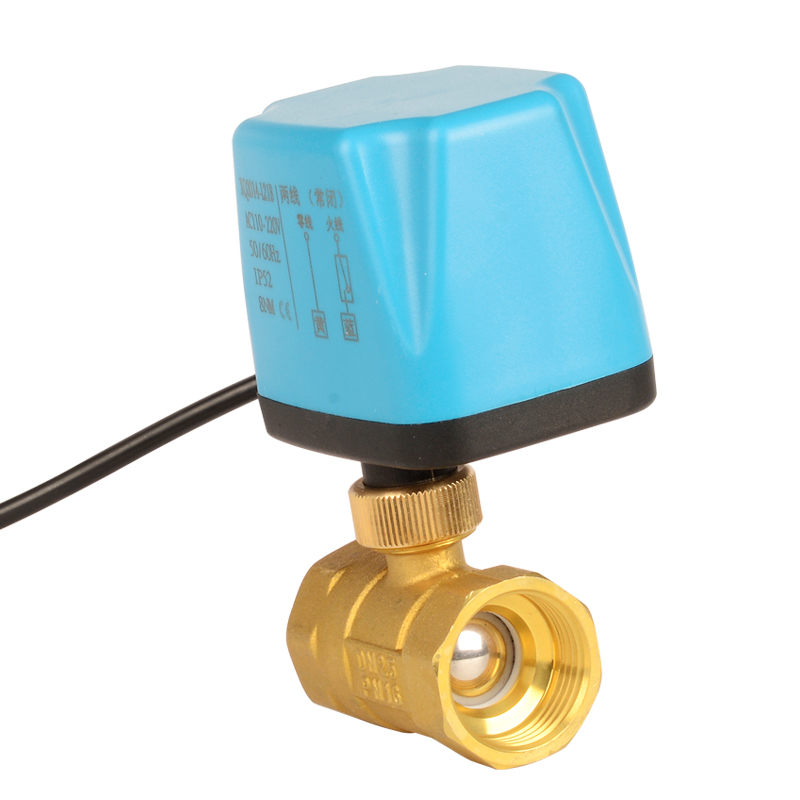

Two-wires electric ball valve

This electric ball valve is roughly divided into two parts, which are the motor and the valve body.The motor can likewise be customized for voltage and water resistance; The valve body can also be customized with thread specifications, sizes, and materials.Note: Unlike the solenoid valve, the electric ball valve switch is sluggish, which takes about 8-10s; However, it can be powered on for a long time.It is generally used for ordinary clean liquids without impurities, if the medium is corrosive, you can also choose UPVC valve with a pressure resistance of 6 kg.

Model	Two-wire one-control two-way brass electric ball valve
Torque Range	8Nm
Size Range	DN15-DN50(1/2” 3/4” 1” 1 1/4” 1 1/2” 2” )
Pressure	0.6Mpa
Temperature	-5~80℃
Voltage	AC220V/AC110V/AC24V/DC5V/DC12V/DC24V
Medium	Cold/hot water

Product Details

Name	Two-wires electric ball valve	Voltage	AC220V / AC110V / DC24V / DC12V / Special voltage	Protect level	IP52
Brand name	YUEER	Thread	G / NPT	Working temp	-5-80℃
Place of Origin	CN; Zhejiang	Type	Ball valve	Medium	water
Customized support	OEM	Working pressure	8Nm	Warranty	12 month
MOQ	100pcs	Valve body pressure	0.6Mpa	Certificate	CNAS, ilac-MRA, CMA, TUV, A&V, intertek
Material	Brass-Chrome Plated Copper	Wire method	2-wire-1-control	Switching times	100,000 times
Size	DN15-DN50	Work time	6-15s	Electric valve capacitor	farad capacitor
