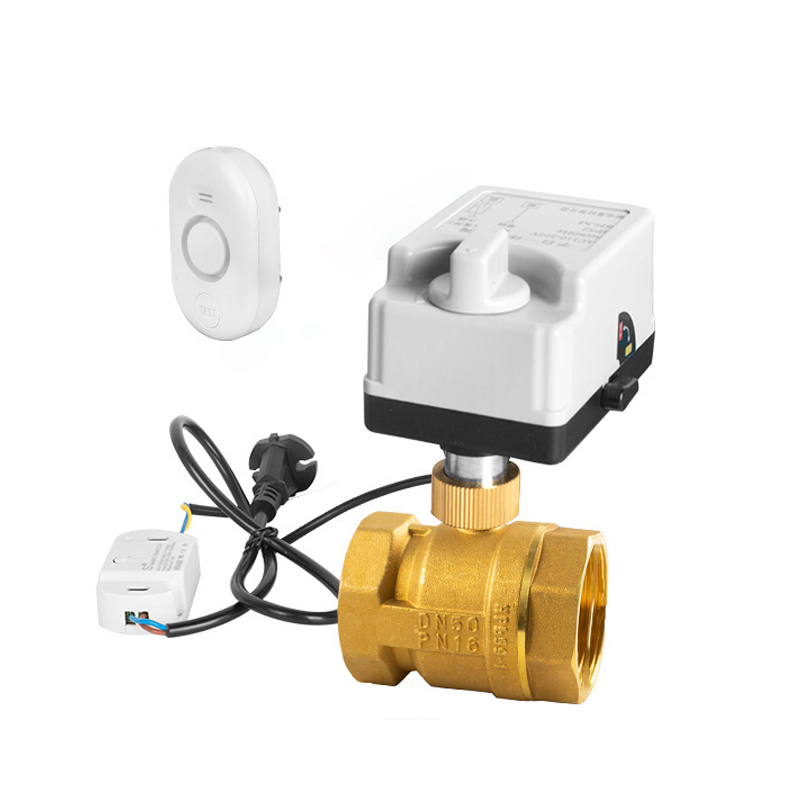

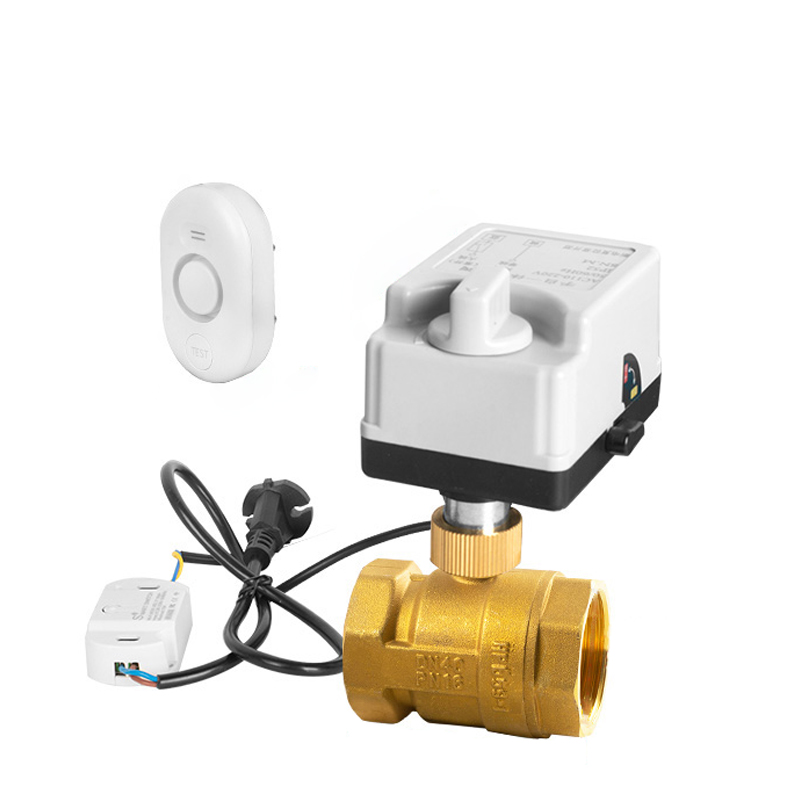

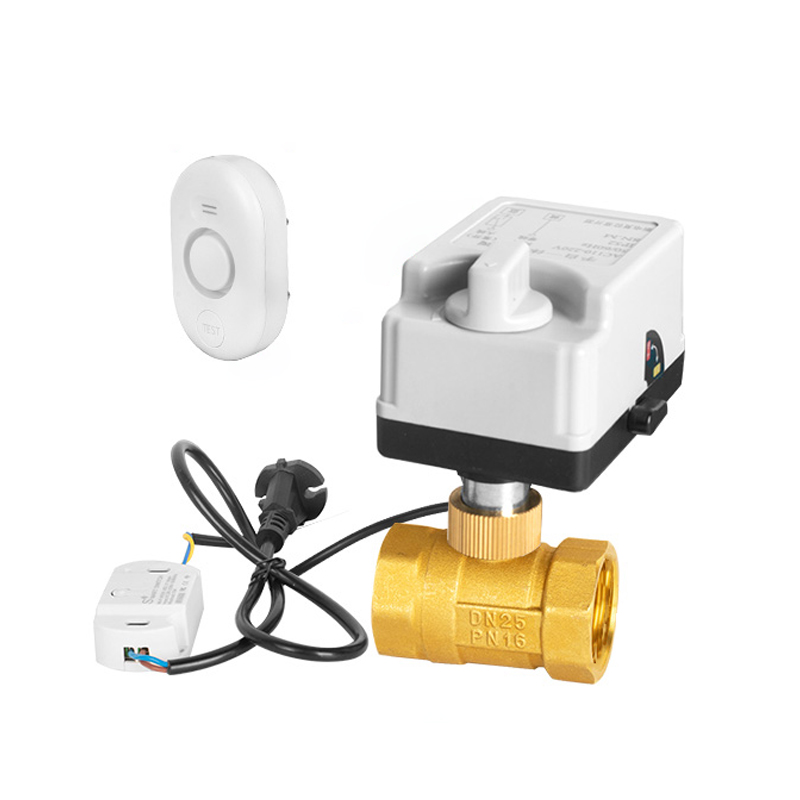

WIFI Water Flood Detection Manual Automatic Electric Ball Valve

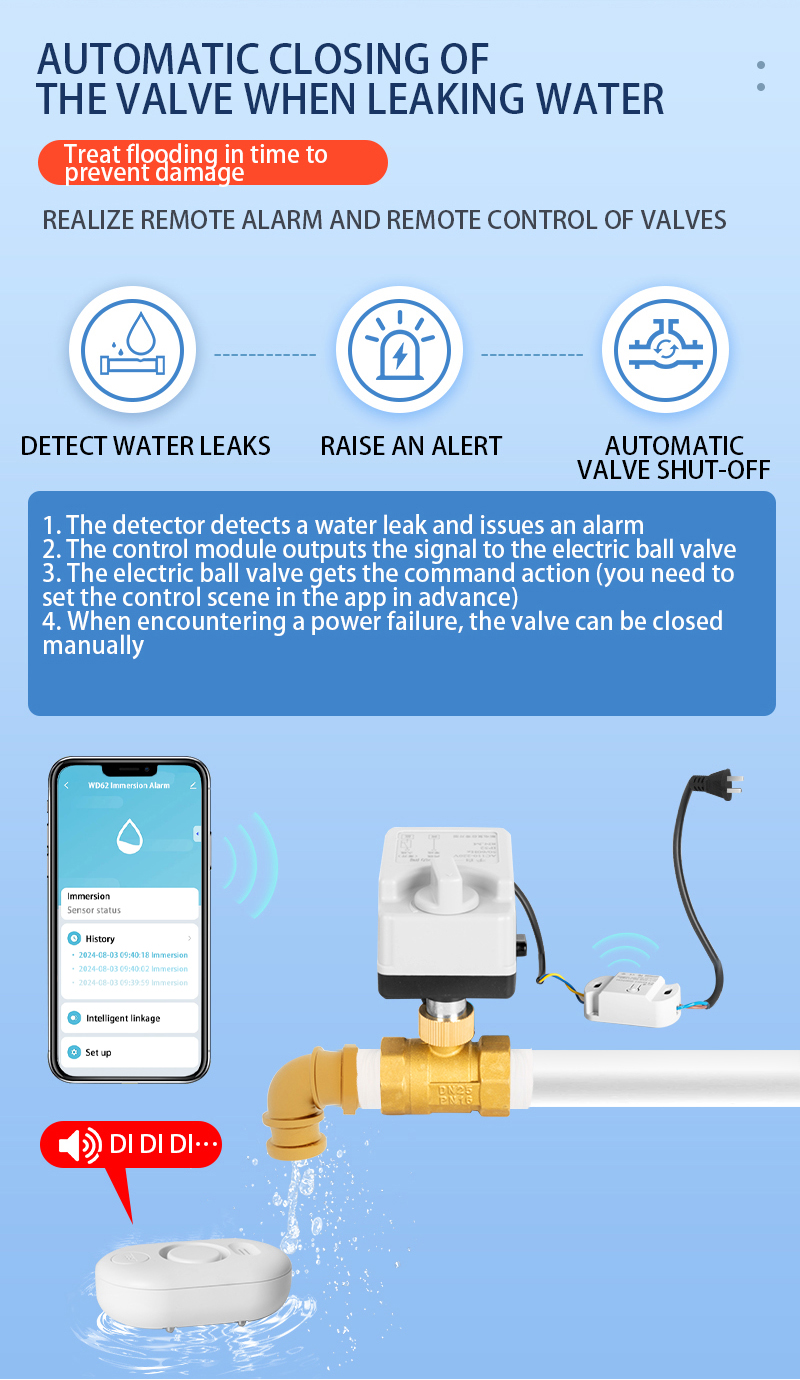

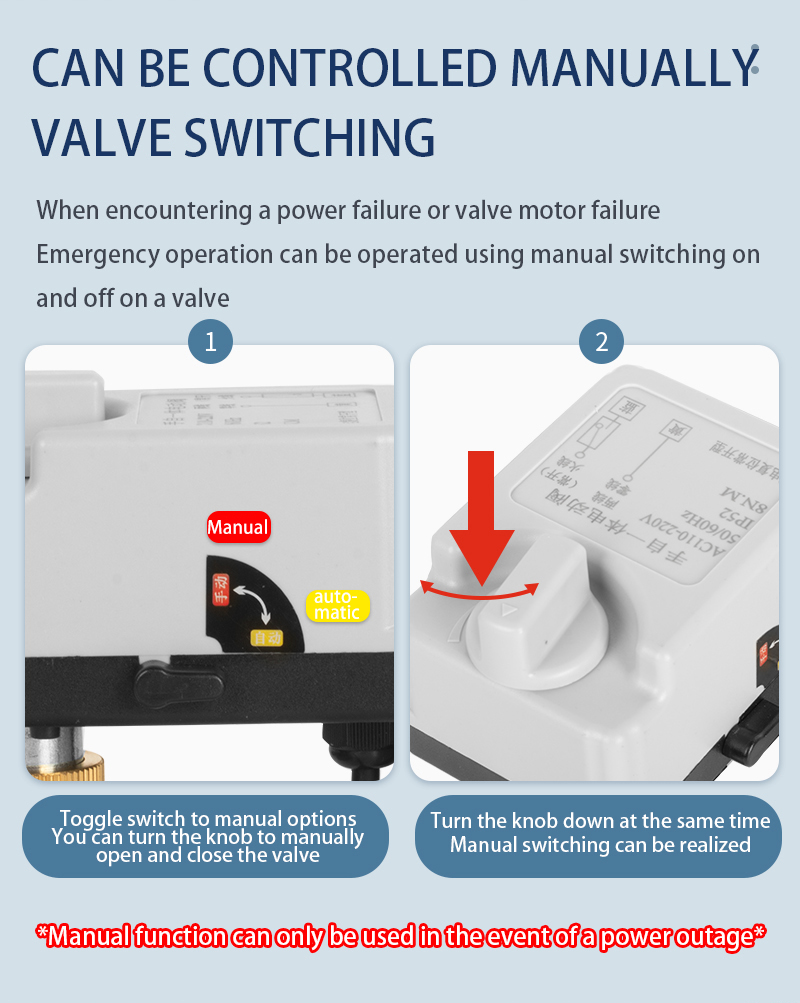

This ball valve is a WiFi water immersion detection manual automatic electric ball valve, this ball valve can be leakage detection, treble alarm, remote control, the motor adopts 8 Nm large torque motor with stable performance, safe and reliable, with manual switch

Torque Range	8Nm
Size Range	DN15 DN20 DN25 DN32 DN40 DN50
Pressure	DN15~32 about 6 kg; DN40~DN50 about 5 kg
Temperature	-5℃~80℃
Voltage	AC220V/AC110V/AC24V/DC5V/DC12V/DC24V
Medium	Cold/hot water

Product Details

Name	WIFI Water Flood Detection Manual Automatic Electric Ball Valve	Voltage	AC220V/AC110V/AC24V/DC5V/DC12V/DC24V	Protect level	IP65
Brand name	YUEER	Thread	G	Working temp	15℃~80℃
Place of Origin	CN; Zhejiang	Type	Ball valve(2way)	Medium	clean water
Customized support	OEM	Torque	8Nm	Warranty	12 month
MOQ	100pcs	Valve body pressure	DN15~32 about 6 kg; DN40~DN50 about 5 kg	Certificate	CNAS, ilac-MRA, CMA, TUV, A&V, intertek
Material	Brass-Chrome Plated Copper, SS304	Wire method	2-wire-1-control	Switching times	100,000 times
Size	DN15-DN50	Work time	15s	Electric valve capacitor	farad capacitor
Detector power supply mode	2 x No. 7 batteries	Alarm volume	≤110dB	Duration of the alarm	15s
Standby current	＜15μA	Operating current	＜150mA	Signal frequency	2.4GHZ
