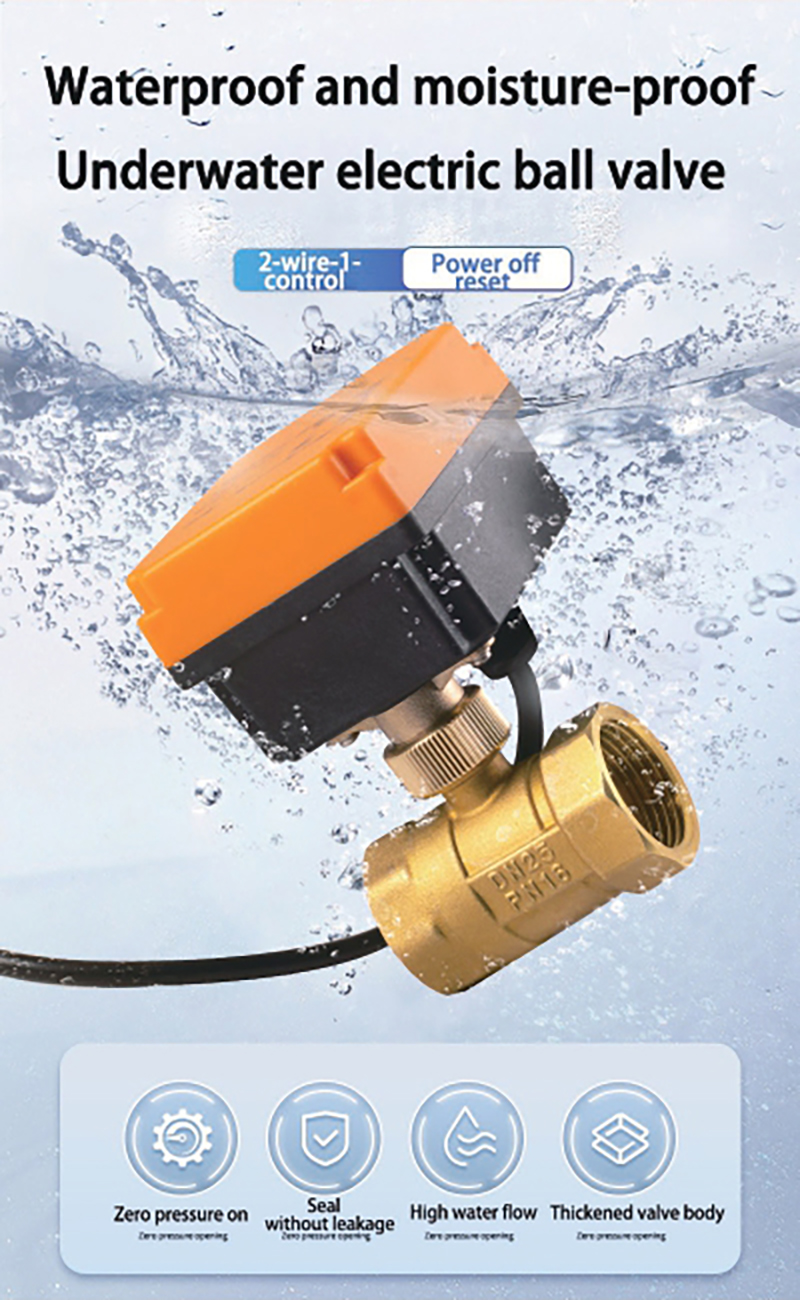

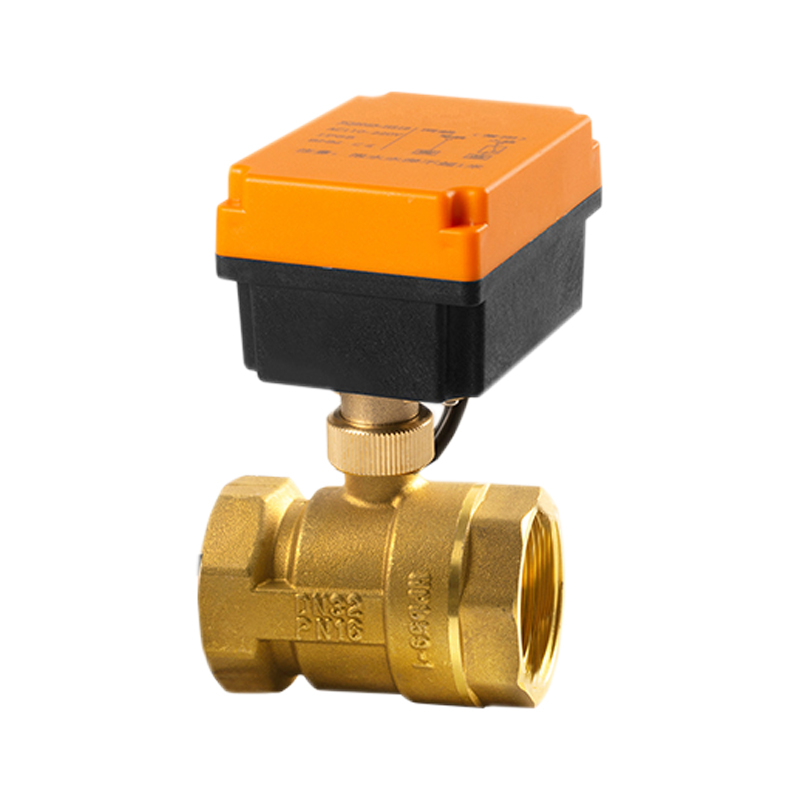

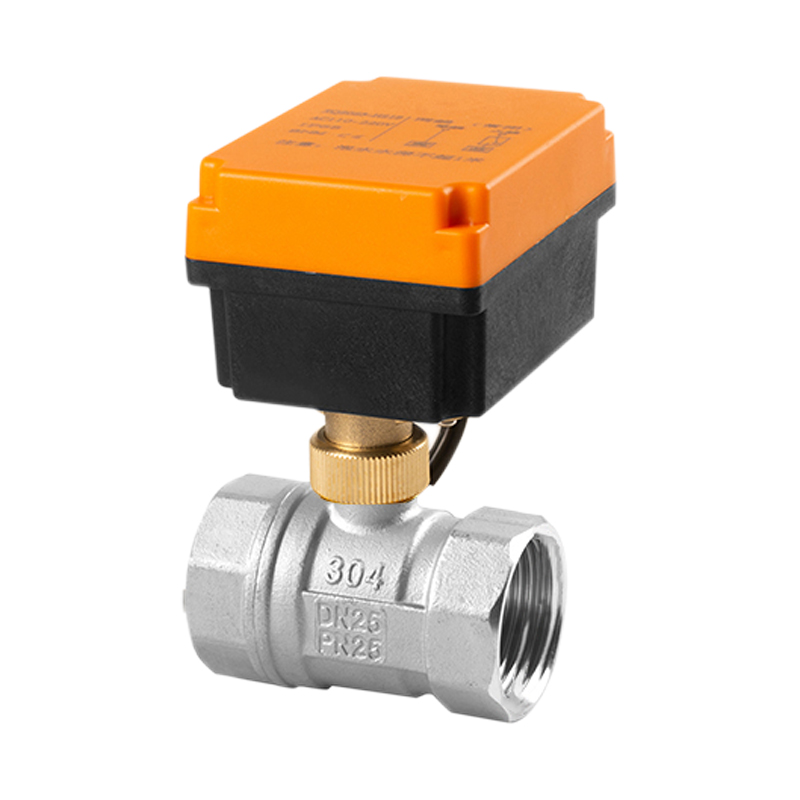

Underwater waterproof electric ball valve

This ball valve is an underwater two-wire electric ball valve, which can be waterproof/moisture-proof/soakable in water, not easy to get hot when opened under zero pressure, and the valve body is easy to open with a torque of 8 Nm, and the detachable design is easy to install

Torque Range	8Nm

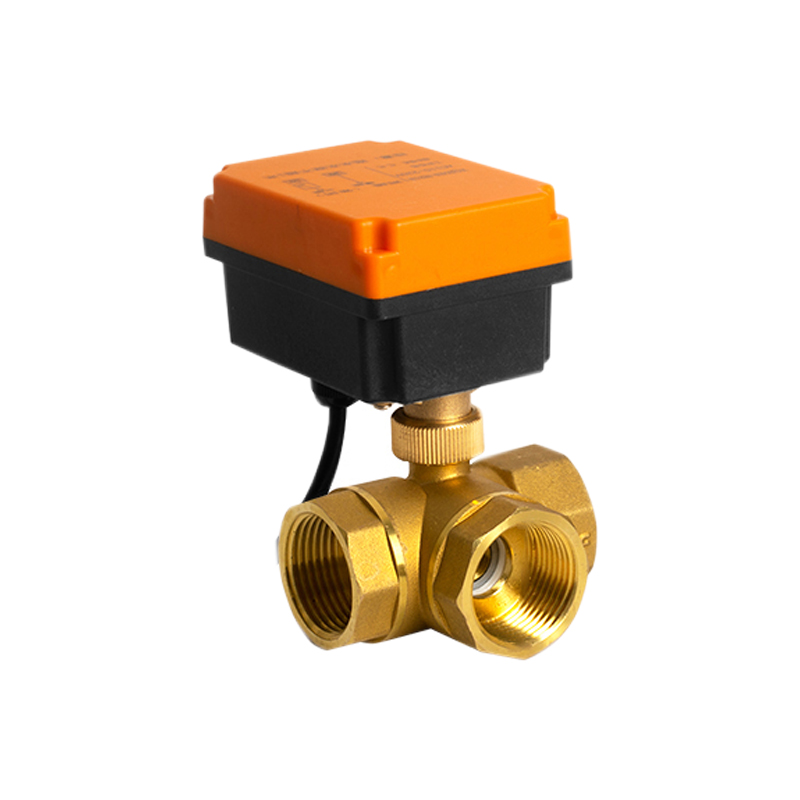

Size Range	DN15 DN20 DN25 DN32 DN40 DN50 (brass)DN15 DN20 DN25 DN32 (stainless steel) DN15 DN20 DN25 DN32 DN40 (3 way)
Pressure	1.6Mpa
Temperature	-5℃~80℃
Voltage	AC220V/DC9V/DC12V/DC36V
Medium	Clean water

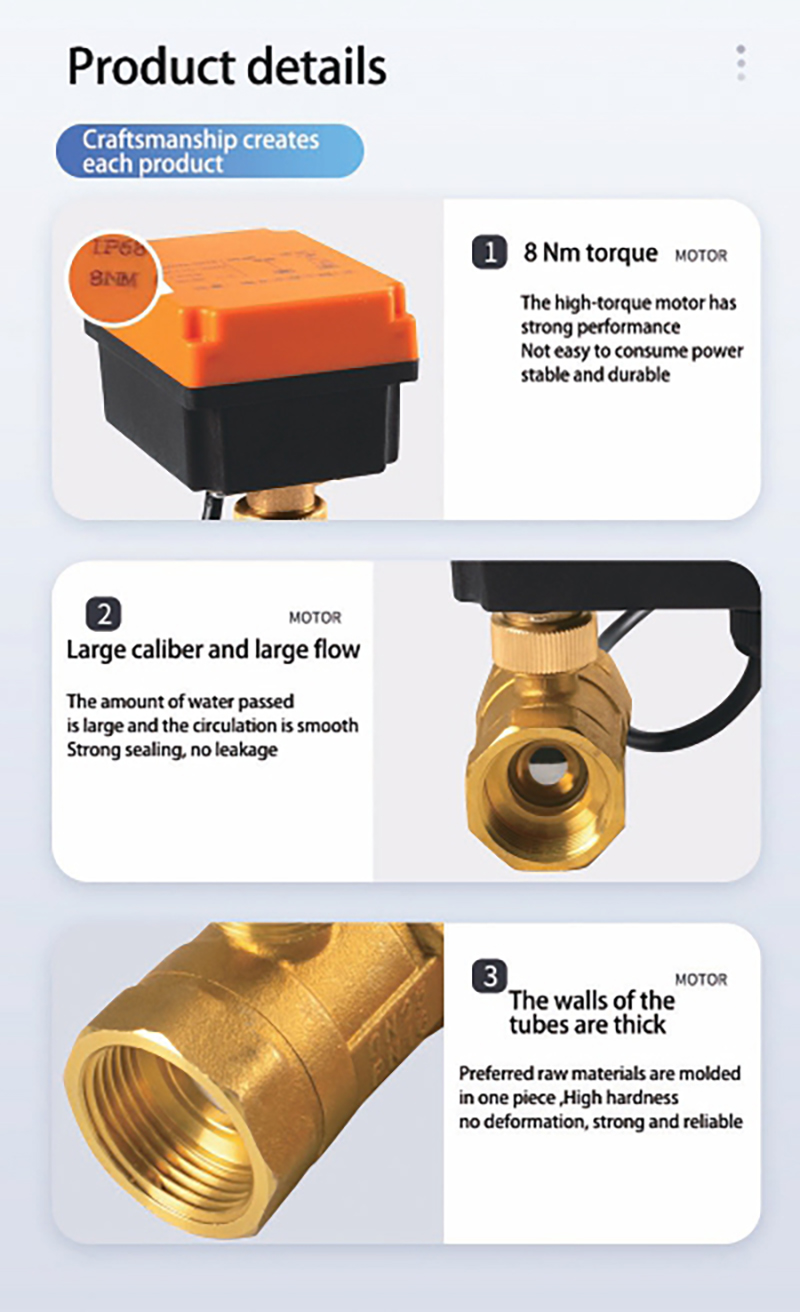

Product Details

Name	Underwater waterproof electric ball valve	Voltage	AC220V/DC9V/DC12V/DC36V	Protect level	IP68
Brand name	YUEER	Thread	G	Working temp	15℃~80℃
Place of Origin	CN; Zhejiang	Type	Ball valve(2way/3way)	Medium	clean water
Customized support	OEM	Torque	8Nm	Warranty	12 month
MOQ	100pcs	Valve body pressure	1.6Mpa	Certificate	CNAS, ilac-MRA, CMA, TUV, A&V, intertek

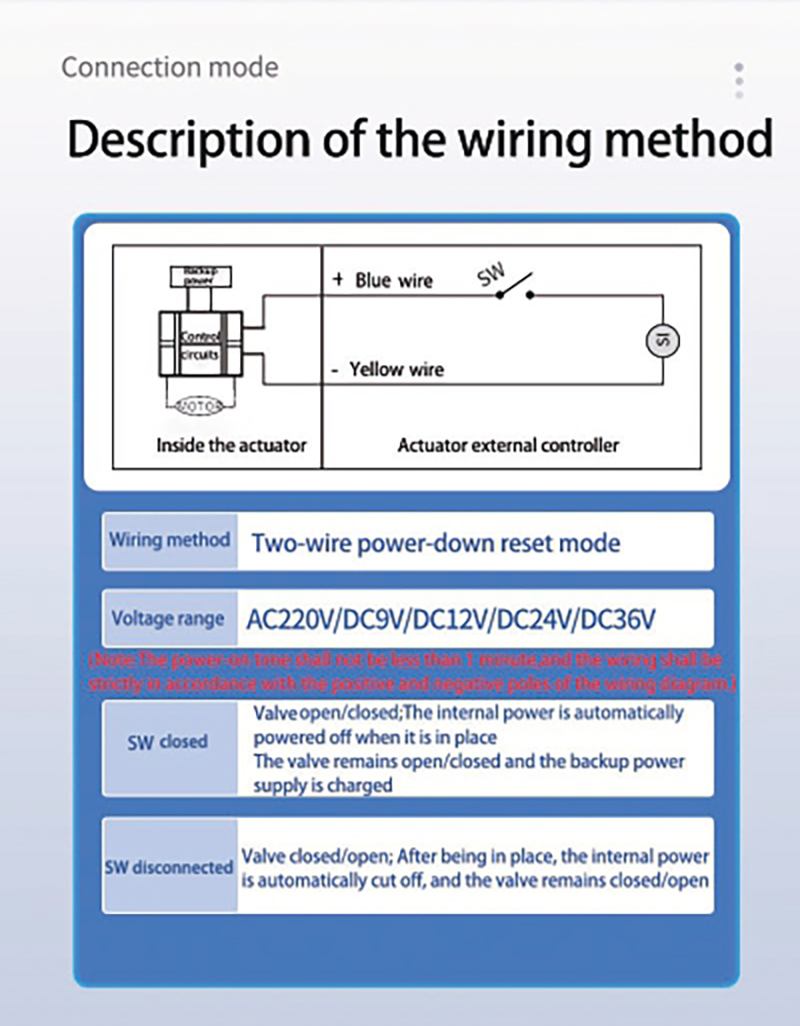

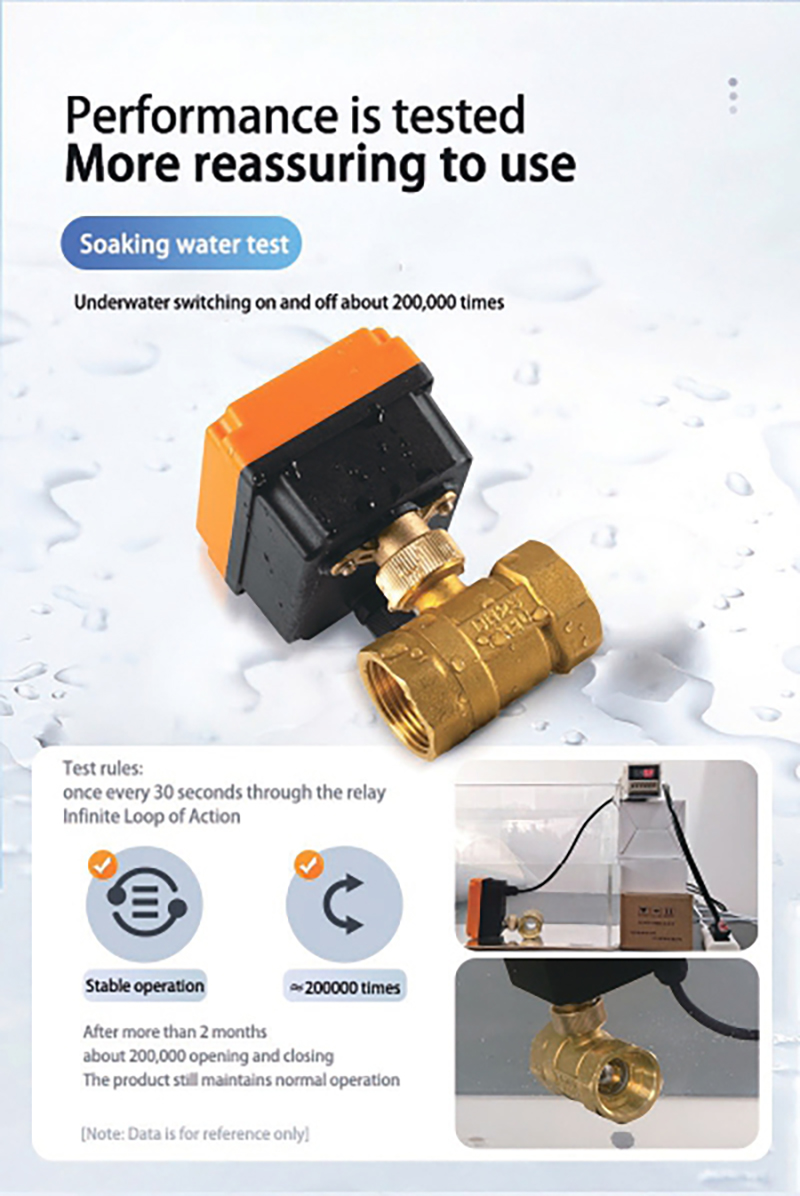

Material	Brass-Chrome Plated Copper, SS304	Wire method	2-wire-1-control	Switching times	100,000 times
Size	DN15-DN50（Brass）DN15-DN32（Stianless Steel）	Work time	15s	Electric valve capacitor	farad capacitor
