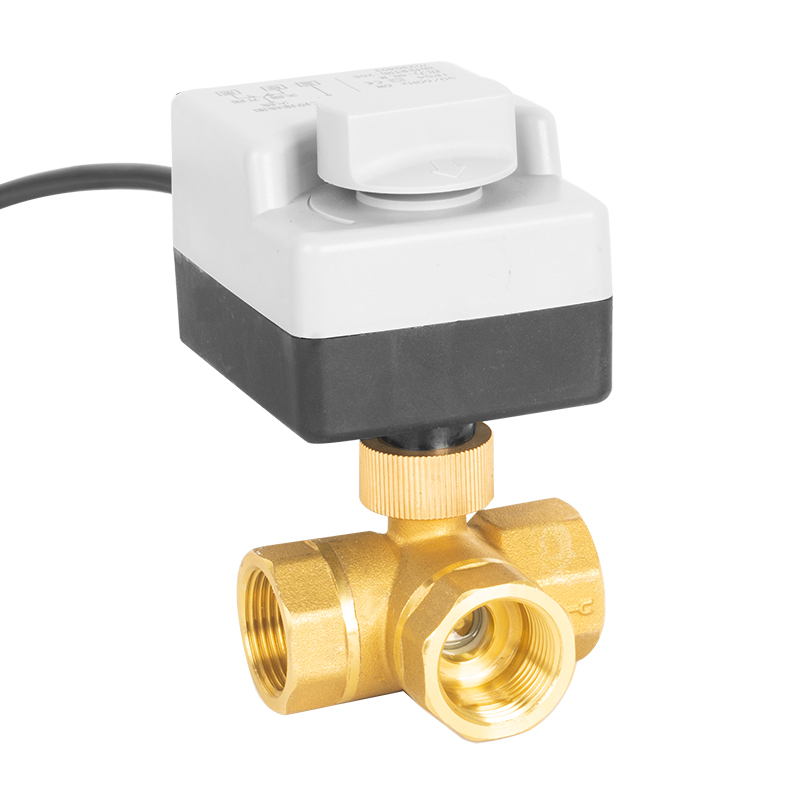

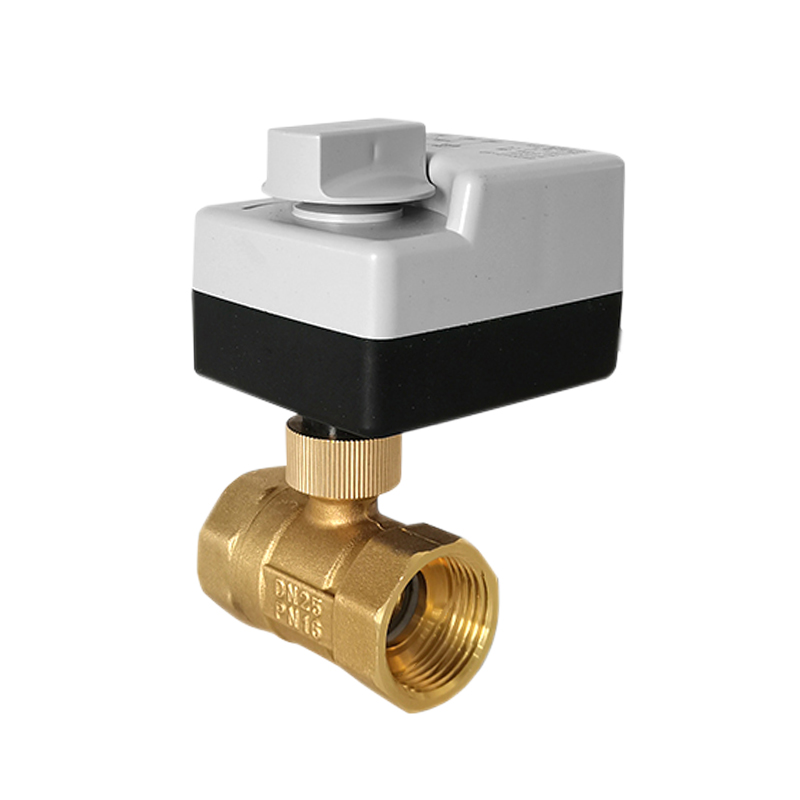

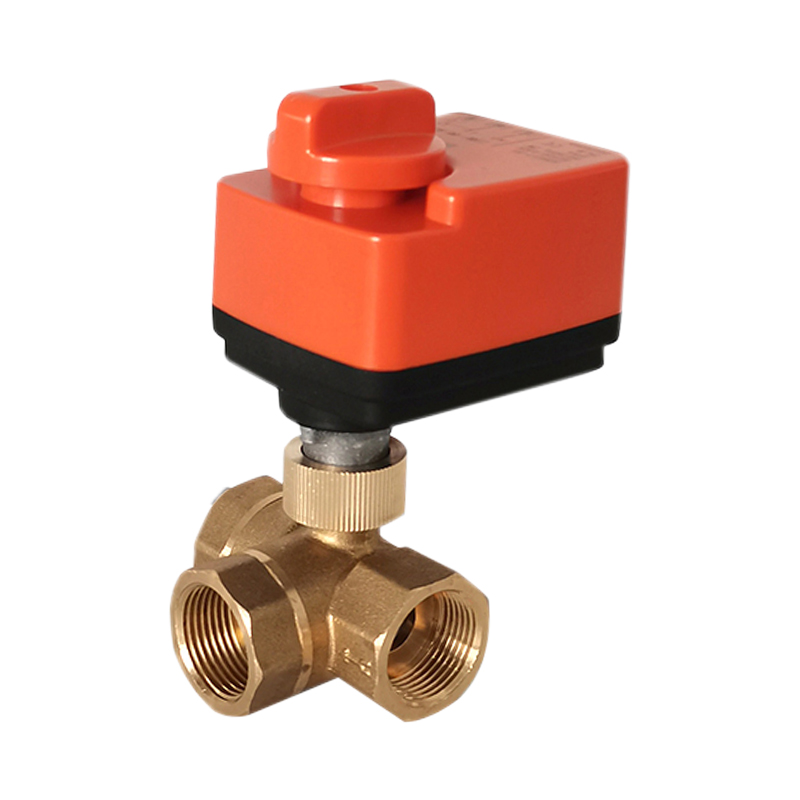

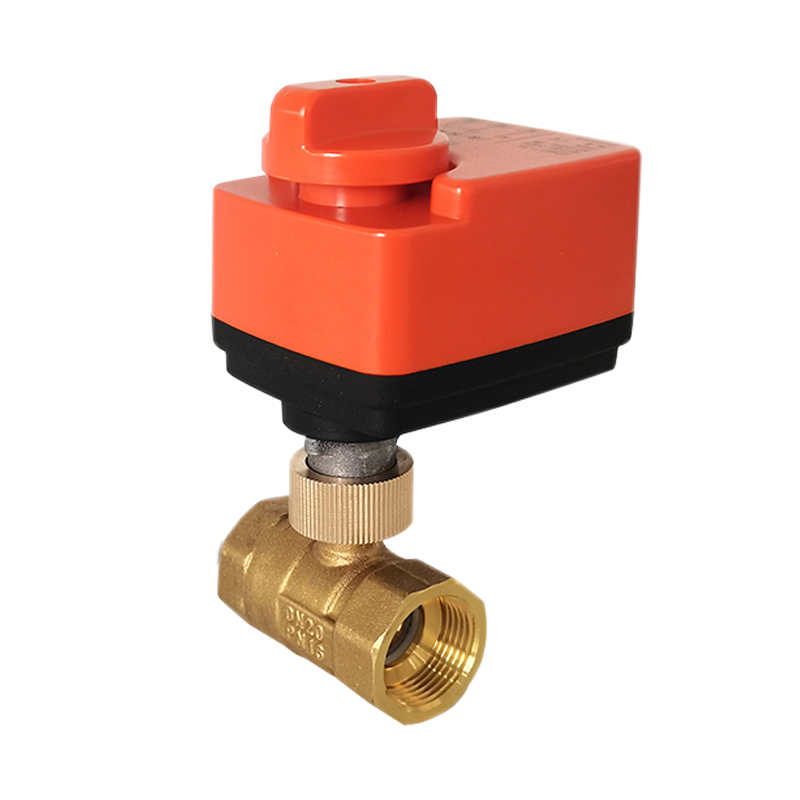

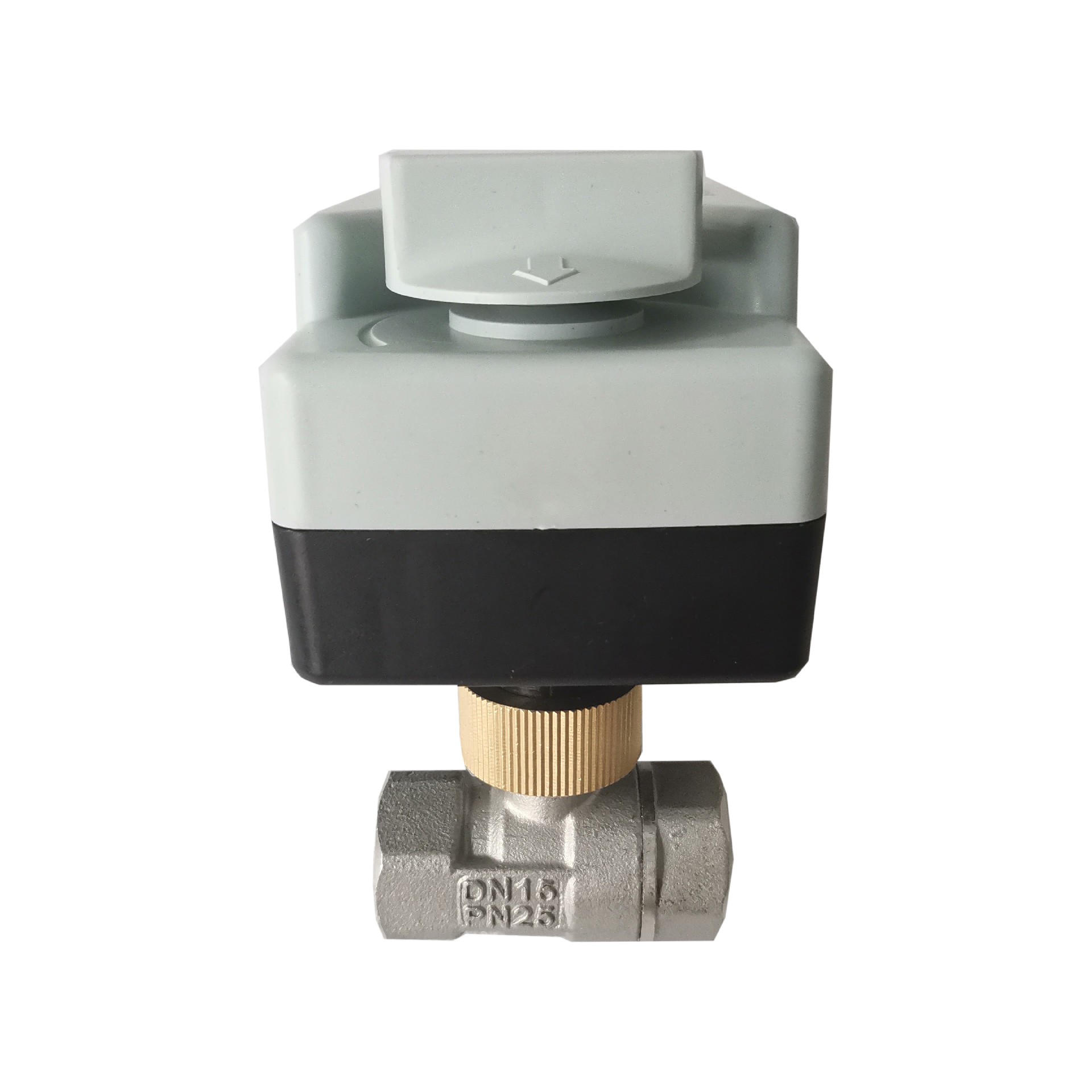

Three-wire manual automatic electric ball valve

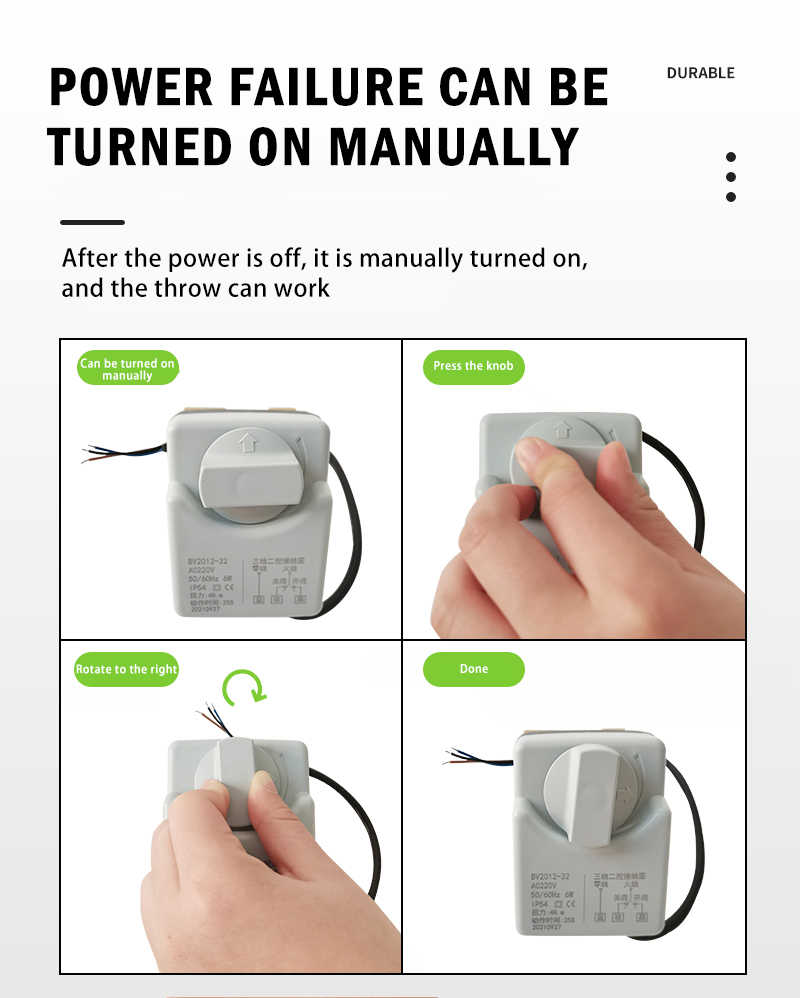

This ball valve is a manual and automatic electric ball valve, the wiring is three wires and two controls, and there are a variety of torque styles to choose 3 Nm/7 Nm

Torque Range	3Nm/7Nm
Size Range	DN15 DN20 DN25 (brass/stainless steel 3 Nm) DN15 DN20 DN25 DN32 DN40 DN50 (Brass 7 Nm)
Pressure	≤0.3Mpa
Temperature	-5~80℃
Voltage	AC220V/AC110V/AC24V/DC5V/DC12V/DC24V
Medium	Cold/hot water

Product Details

Name	Three-wire manual automatic electric ball valve	Voltage	AC220V/AC110V/AC24V/DC5V/DC12V/DC24V	Protect level	IP53
Brand name	YUEER	Thread	G	Working temp	-5~80℃
Place of Origin	CN; Zhejiang	Type	Ball valve(2way/3way)	Medium	Hot and cold water
Customized support	OEM	Torque	3Nm/7Nm	Warranty	12 month
MOQ	100pcs	Valve body pressure	DN15 DN20 DN25 (brass/stainless steel 3 Nm) DN15 DN20 DN25 DN32 DN40 DN50 (Brass 7 Nm)	Certificate	CNAS, ilac-MRA, CMA, TUV, A&V, intertek
Material	Brass-Chrome Plated Copper, SS304	Wire method	3-wire-1-control/3-wire-2-control	Switching times	100,000 times
Size	DN15-DN50	Work time	6-15s	Electric valve capacitor	farad capacitor
