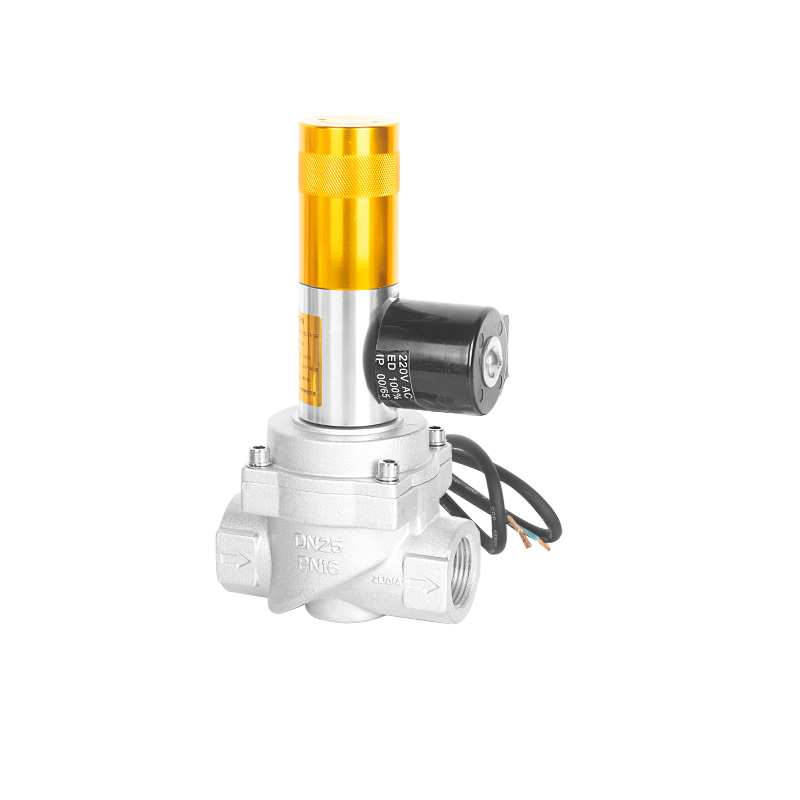

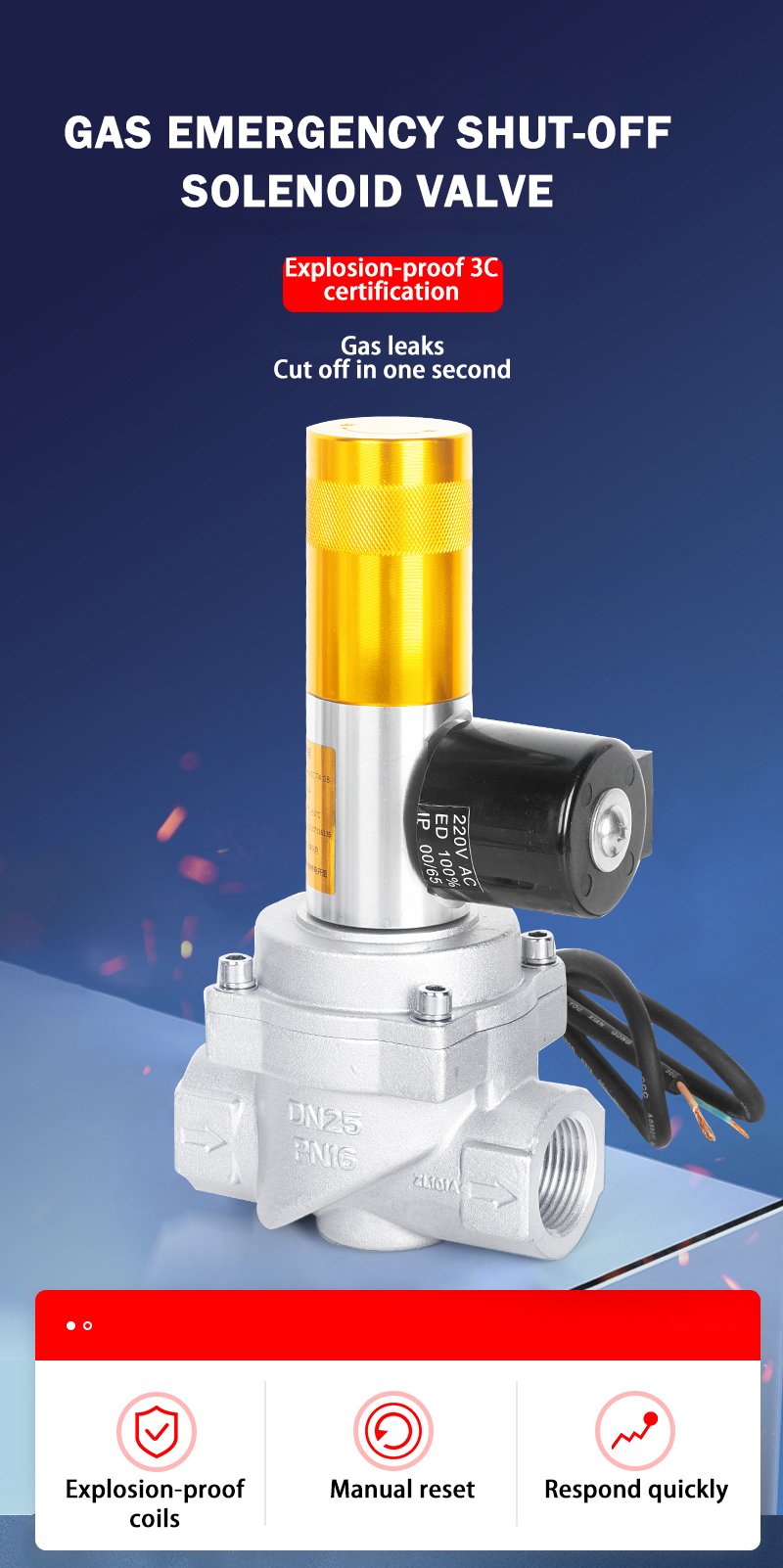

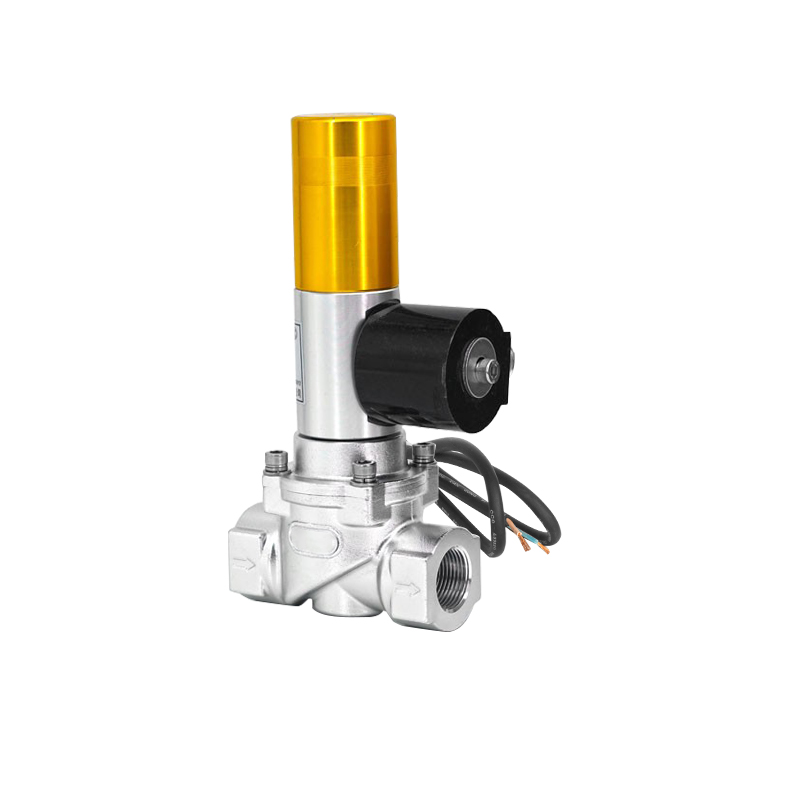

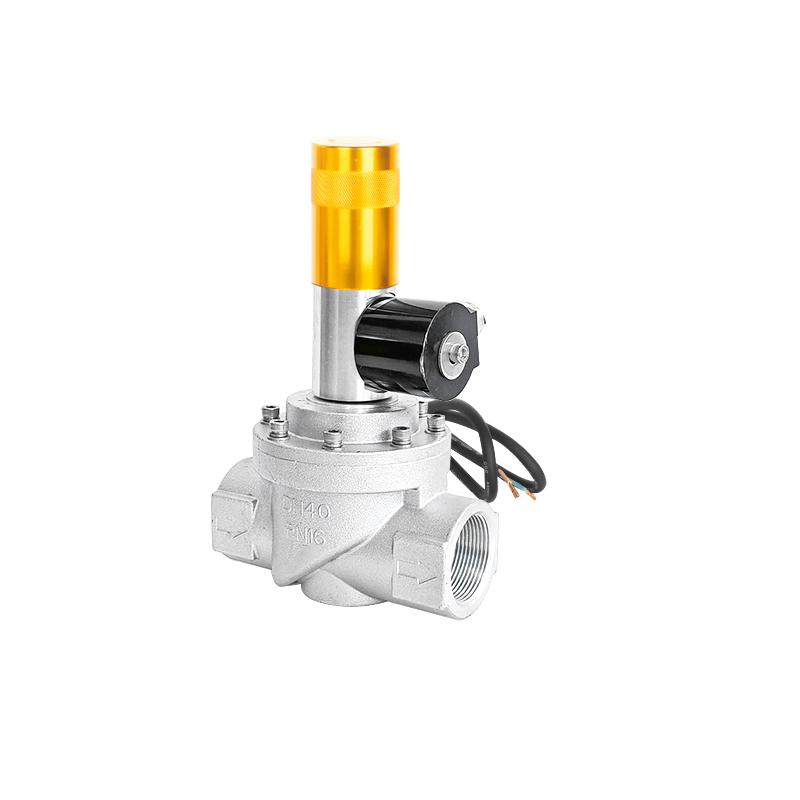

Gas emergency shut-off solenoid valve

Product name Gas emergency shut-off solenoid valve Voltage rangeAC220V/DC24VLeader length≈1M Body material Aluminumalloy Connection Flanged or threaded connection Warranty Period The solenoid valve body is guaranteed for one year, and the fittings are three months (accessories: coils, seals)

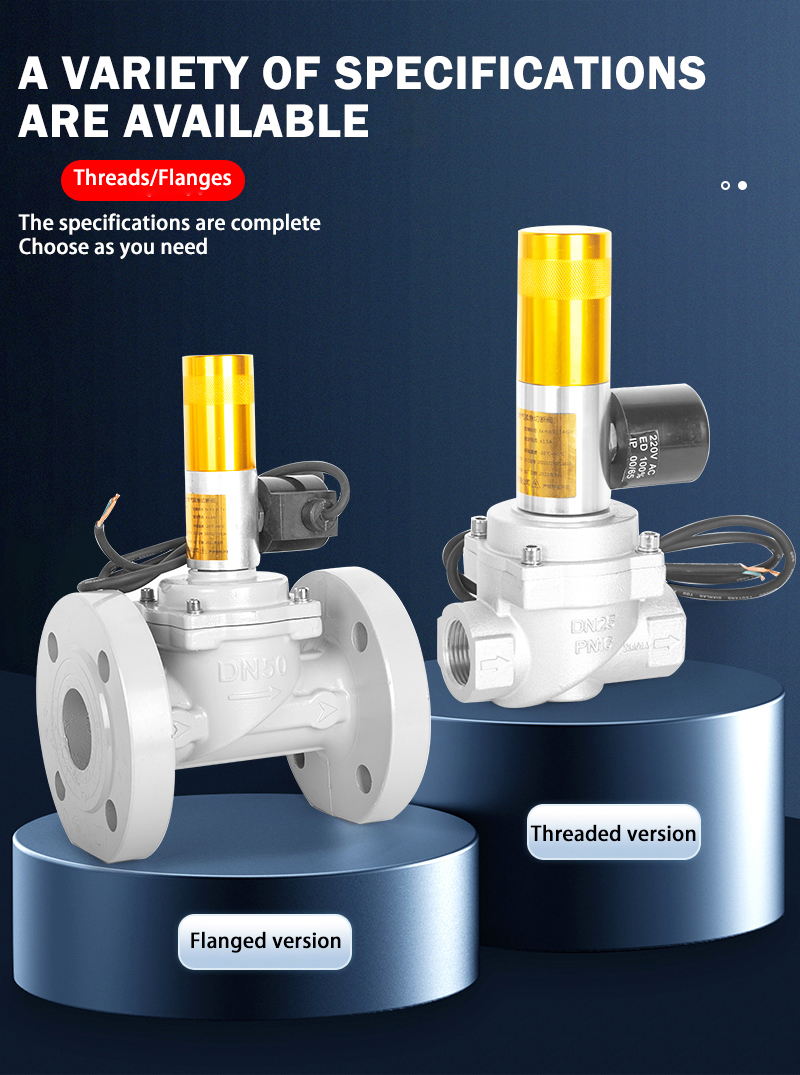

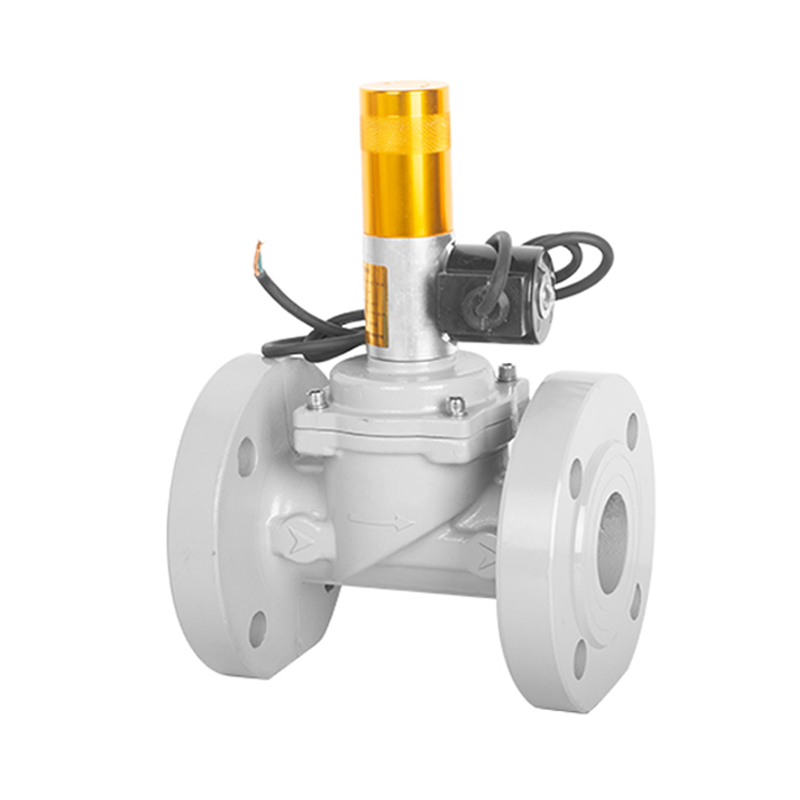

  Size Range DN15-DN50(threaded)DN25-DN200(Flanged)
  Pressure 0.1-0.3Mpa
  Voltage AC220V/DC24V
  Medium Natural gas, liquefied petroleum gas, coal gas
Product nameGas emergency shut-off solenoid valveVoltage rangeAC220V/DC24VLeader length≈1M
Body materialAluminum alloyConnectionFlanged or threaded connectionWarranty PeriodThe solenoid valve body is guaranteed for one year, and the fittings are three months (accessories: coils, seals) are correctly installed and are not man-made

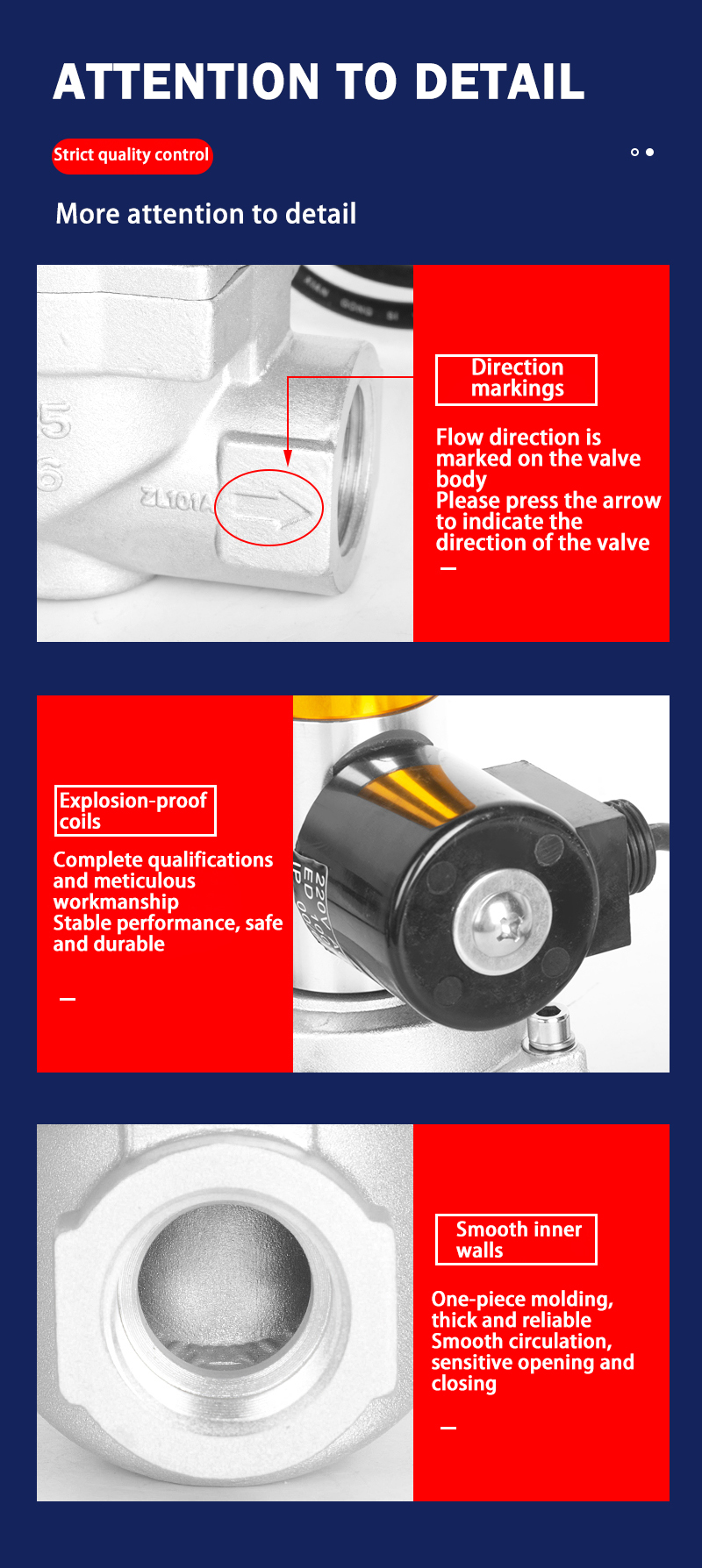

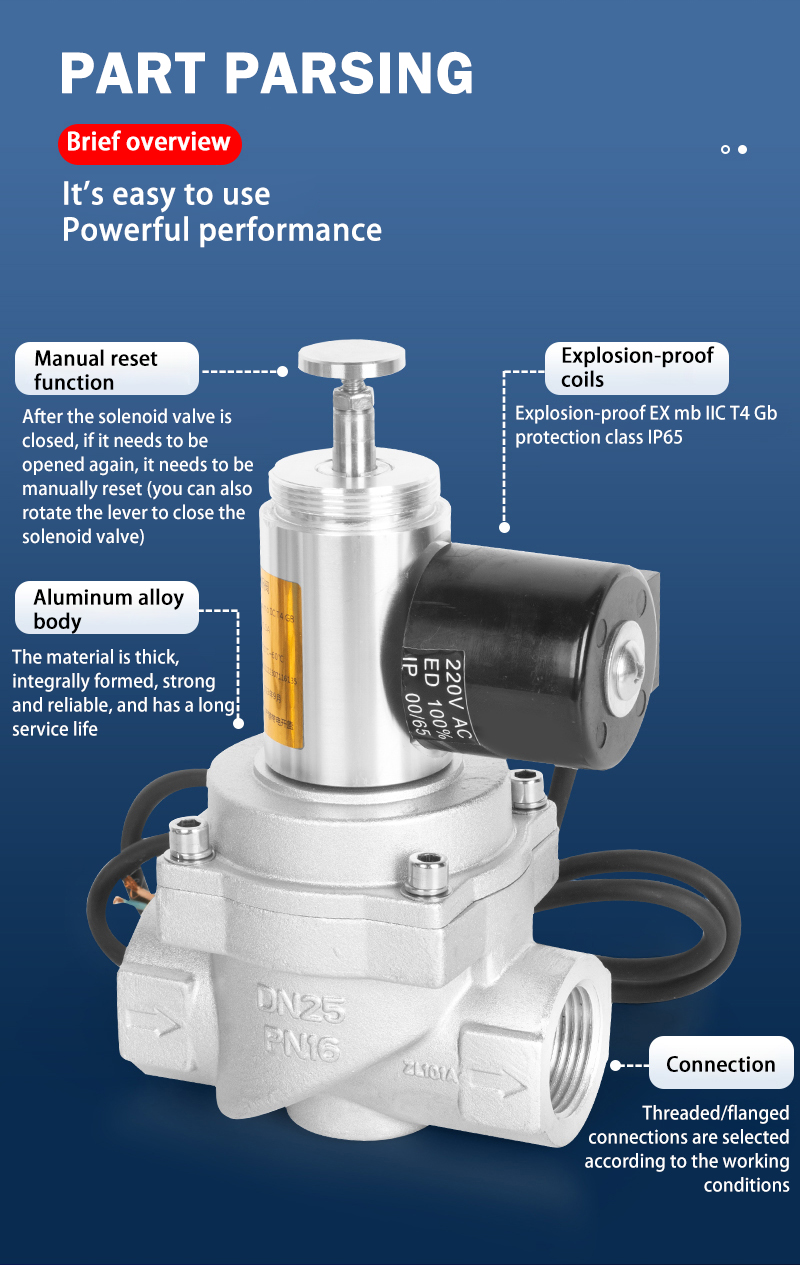

Sealing materialNitrile rubberControl modeNormally open type (pulse power on, manual reset)Precautions1. It must be installed horizontally, pay attention to the direction of the arrow of the valve body during installation, and do not install it vertically 2. Only when the valve is opened, can the pipeline strength pressure test 3. When opening the valve, first lift the handle hard, and the internal pilot assembly of the valve will be automatically opened, so that the pressure at both ends of the inlet and outlet of the valve will be balanced, and the pulling force can be increased at this time, and the handle can be lifted to the opening position, and the valve can be kept in the open state
Withstand voltage range0.1-0.3MpaApplicable mediaNatural gas, liquefied petroleum gas, coal gas
