Name: HK60-D Cast Iron Wafer Type Electric Butterfly Valve
Brand: GETM
Availability: InStock
Rating: 4.8 (61 reviews)

Home

Products

Water Solenoid Valve

Anti-corrosion solenoid valve

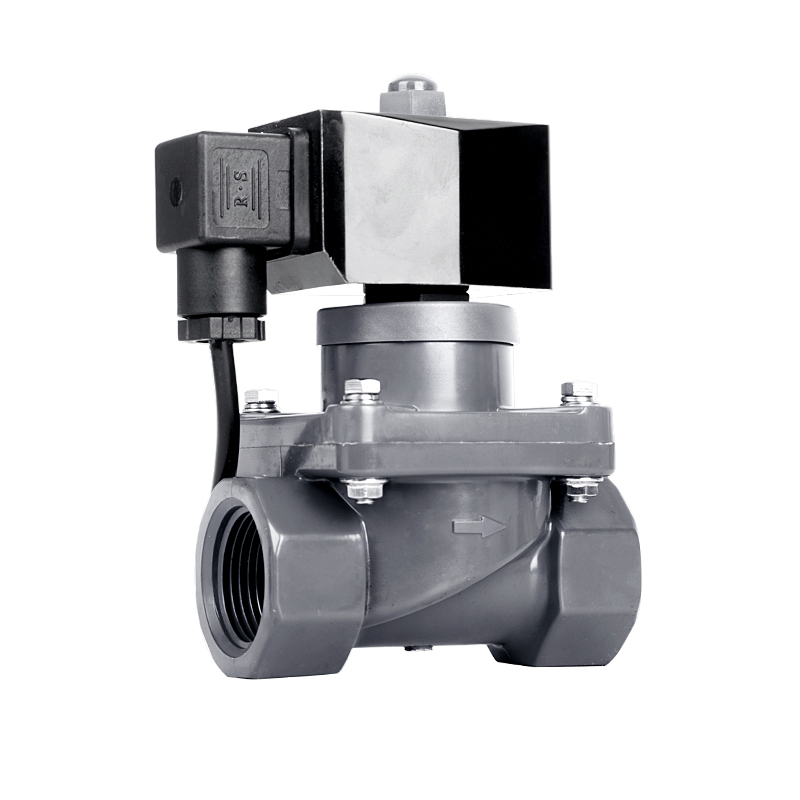

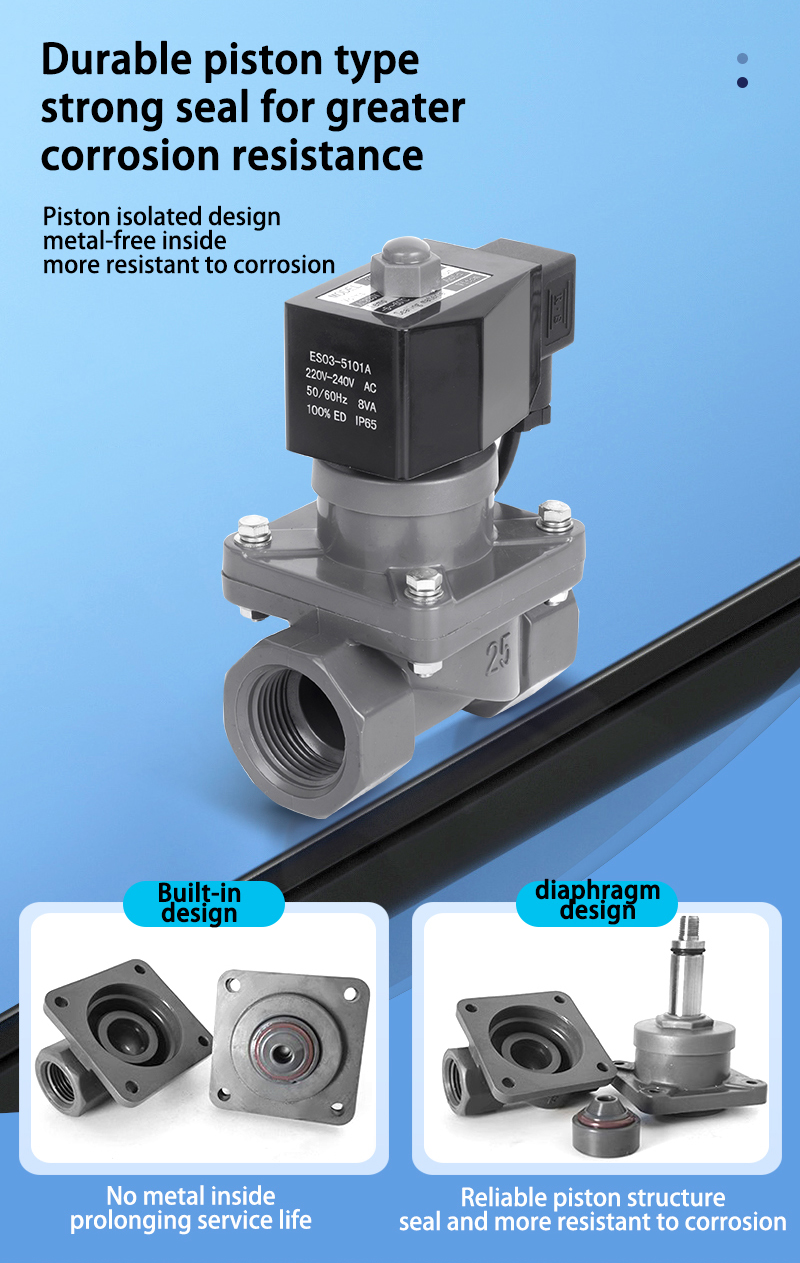

This anti-corrosion solenoid valve adopts moisture-proof coil seal, no leakage, no leakage, no leakage, the valve body is available in UPVC and CPVC two materials, diaphragm design, piston structure is more corrosion-resistant

Size Range	DN15 DN20 DN25 DN32 DN40 DN50
Pressure	0.1~0.6Mpa（6KG）
Temperature	-10℃~50℃
Voltage	AC220V/DC24V
Medium	Corrosive media such as acids and alkalis (no impurities liquid/gas) UPVC: resistant to 10% hydrochloric acid/sulfuric acid CPVC: resistant to 30% hydrochloric acid, 50% sulfuric acid

Product Details

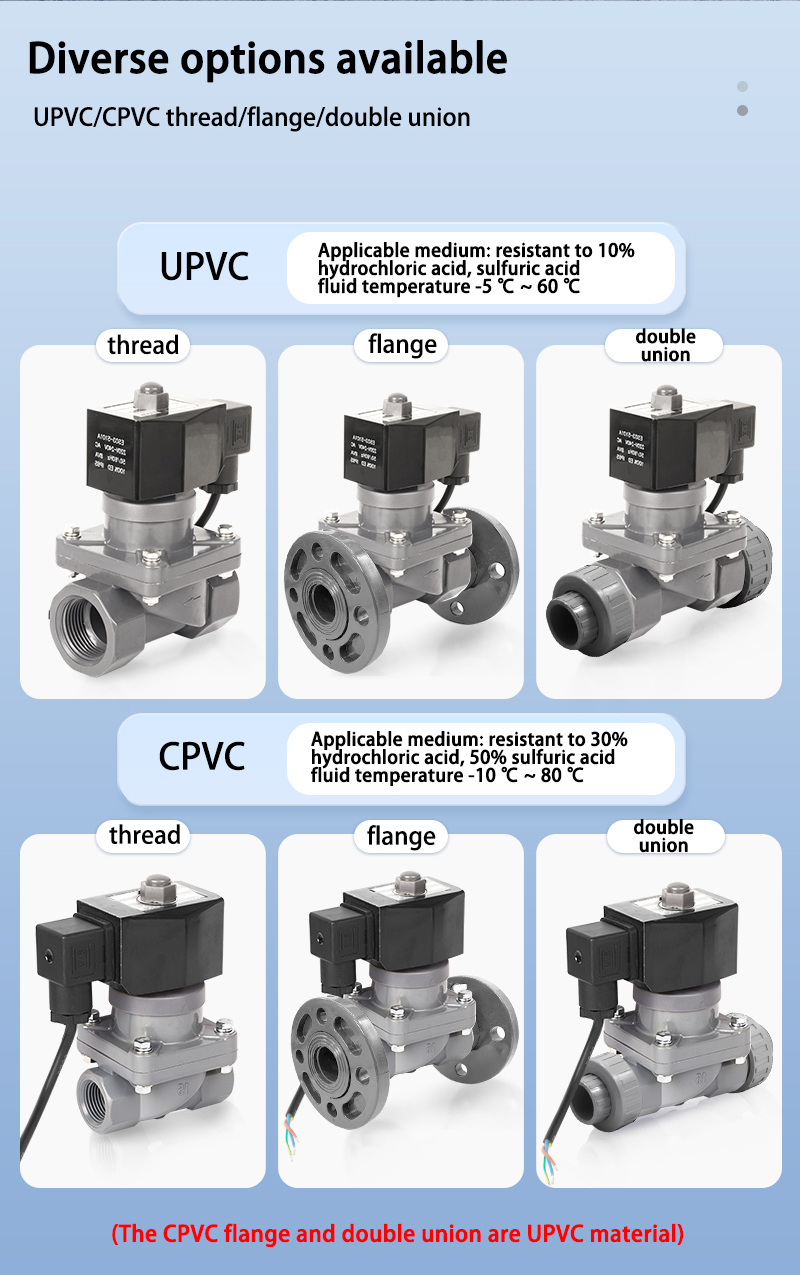

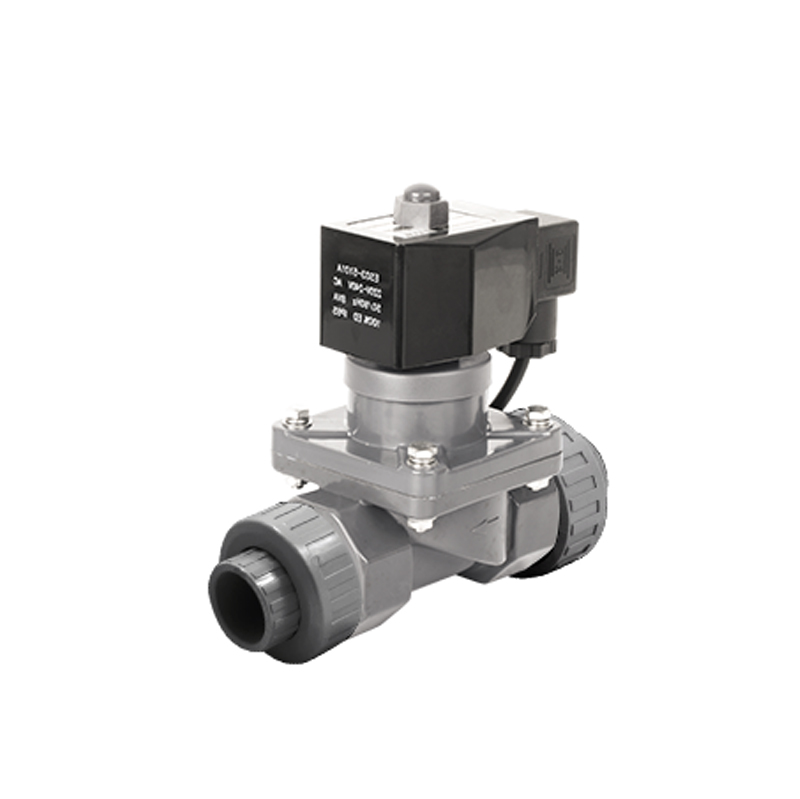

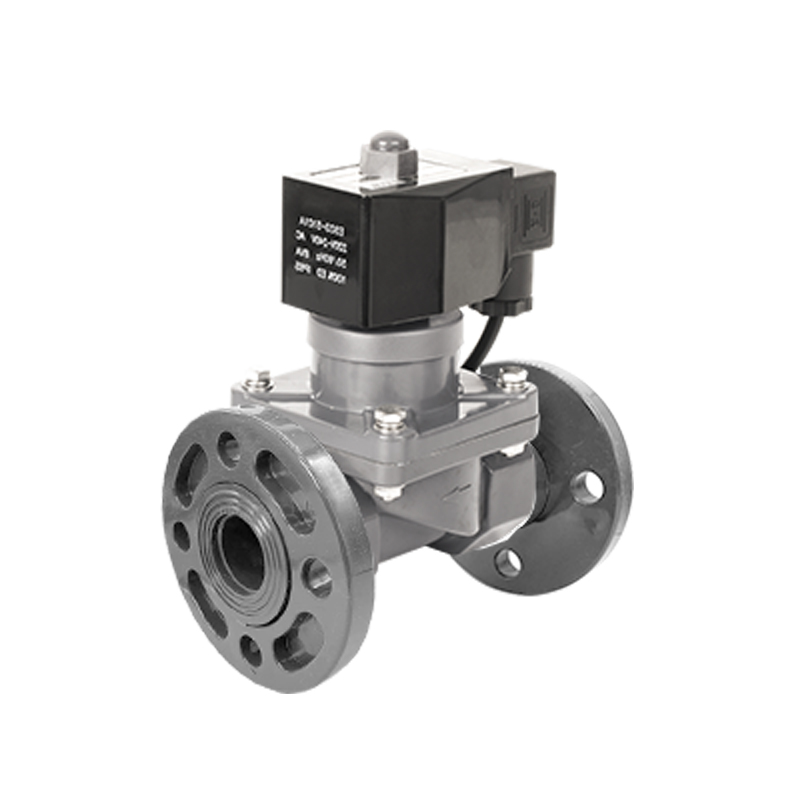

Body material	UPVC/CPVC	Connection	Female Thread/Flange	Temperature of Media	-10℃~50℃
Type	Ditrct-acting — Normally Closed (N/C) / Normally Open (N/O)	Voltage	AC380V / AC220V / AC110V / AC24V / DC24V / DC12V	Coil type	Plastic
Size	DN15~DN50	Thread type	BSPP(G) / NPT	Waterproof level	IP65
Medium	Corrosive media such as acids and alkalis (no impurities liquid/gas) UPVC: resistant to 10% hydrochloric acid/sulfuric acid CPVC: resistant to 30% hydrochloric acid, 50% sulfuric acid	Seal Material	NBR	MOQ	15pcs / 30pcs / 100pcs
Pressure	0.1~1.6Mpa	Customized support	OEM / ODM	Brand Name	YUEER

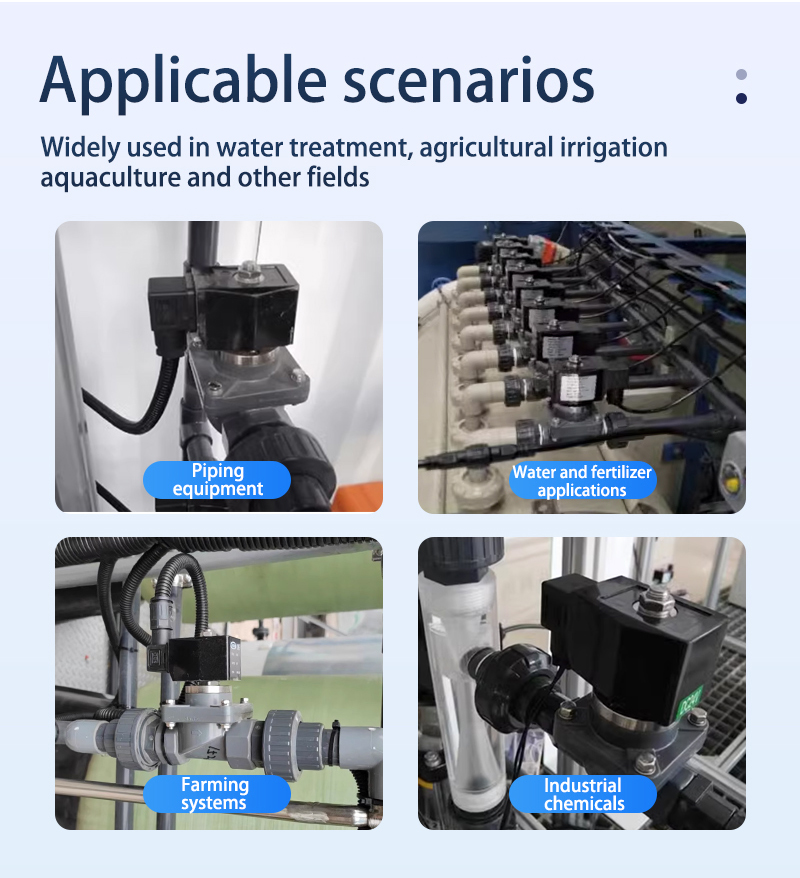

Temperature	-5~80℃	Application	Water treatment, Food machinery, Natural gas, ect.	Warranty	12 months
Place of Origin	CN; ZHE	Certificate	CE, RoHS, CNAS, ilac-MRA, CMA, TUV, A&V, intertek	Structure	Diaphragm
