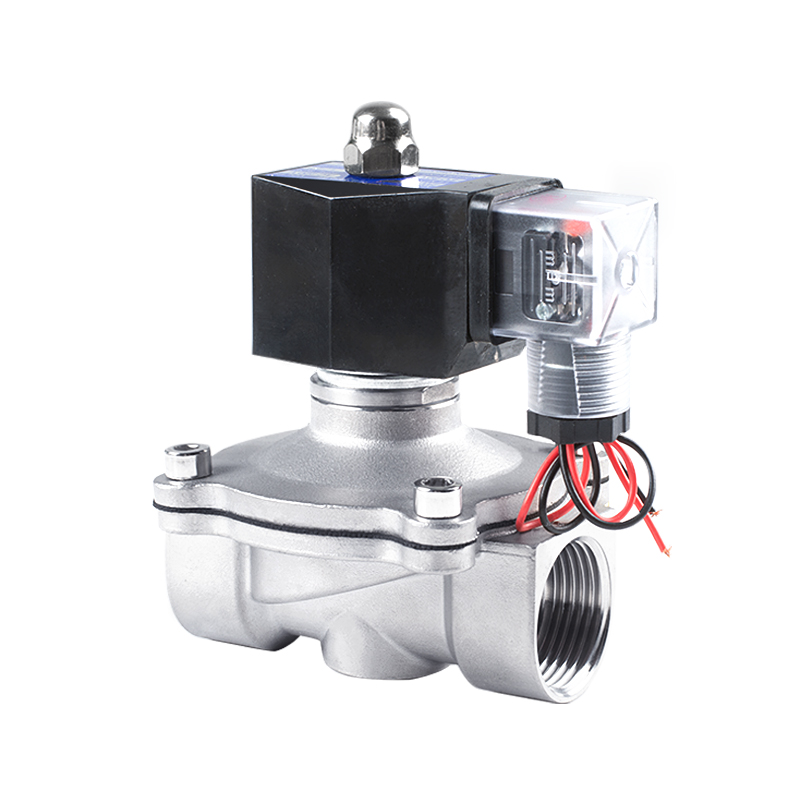

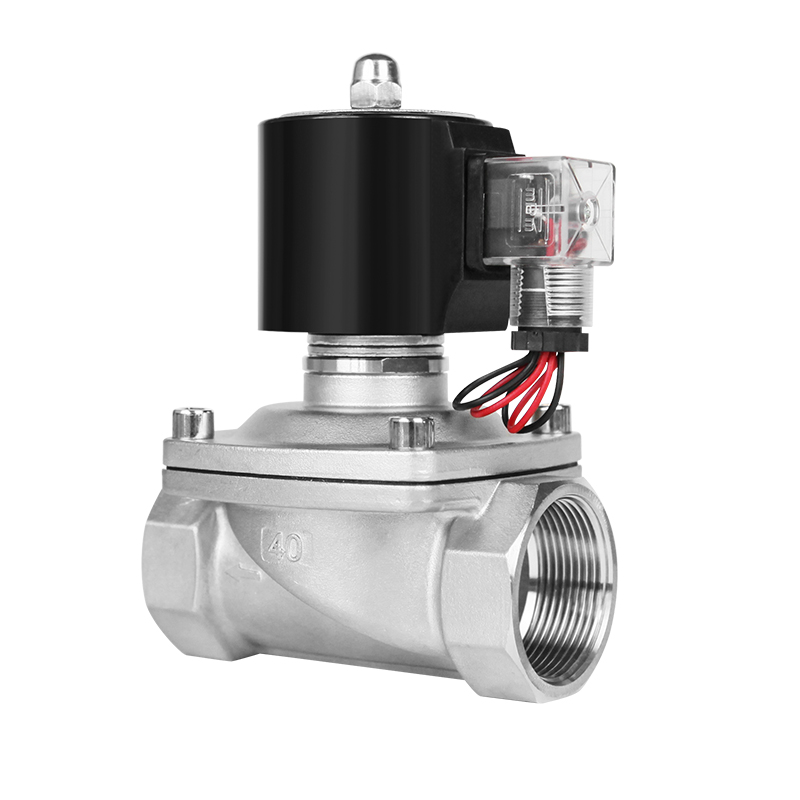

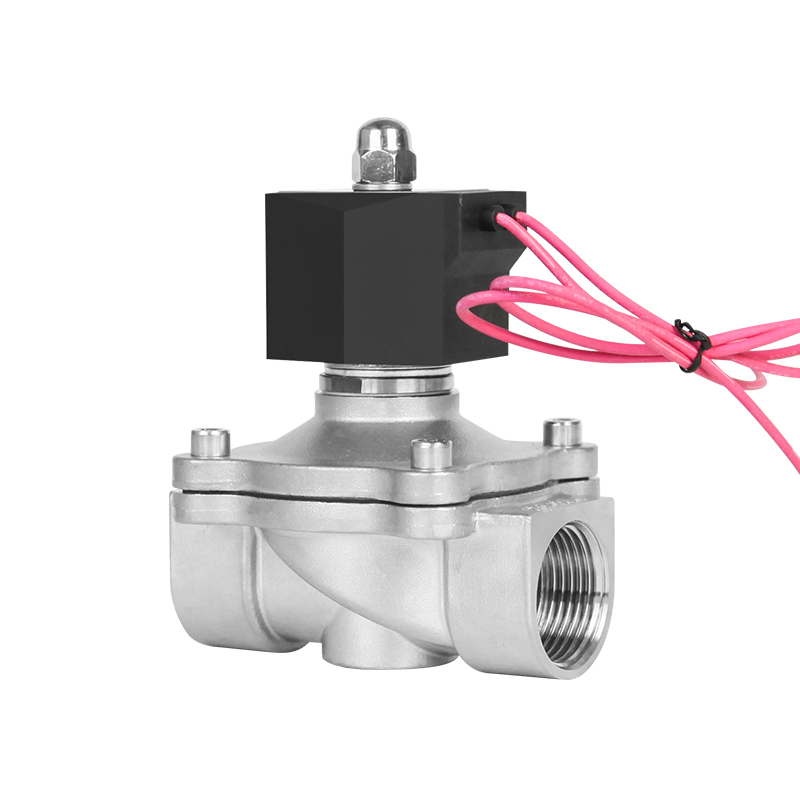

Stainless steel waterproof normally closed solenoid valve

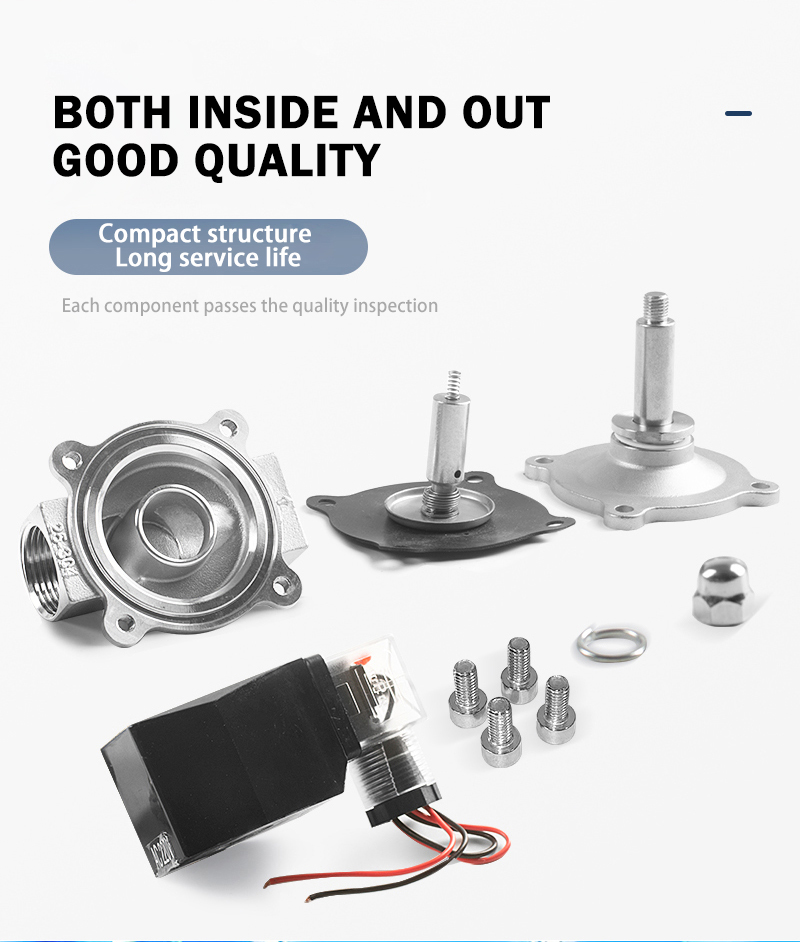

This solenoid valve is a conventional diaphragm type, direct-acting solenoid valve, quick switch response, can be used for clean liquids, pressure resistance of 10 kg, different media correspond to different materials of seals.The valve body is roughly divided into two parts: the coil and the valve body. Both parts accept customization, the coil can be divided into waterproof and non-waterproof, and the voltage can also be customized; The body can be selected with a choice of thread type such as BSP, G, NPT, size and material.

Size Range	DN10-DN50( 3/8” 1/2” 3/4” 1” 1 1/4” 1 1/2” 2”)
Pressure	0-10KG（0-1.0Mpa）
Temperature	-5℃~80℃/150℃
Voltage	AC220V/AC110V/DC24V/DC12V
Medium	No impurities liquids/gases

Product Details

Body material	Stainless Steel	Connection	Female Thread	Temperature of Media	Normal Temperature
Type	Ditrct-acting — Normally Closed (N/C) / Normally Open (N/O)	Voltage	AC380V / AC220V / AC110V / AC24V / DC24V / DC12V	Coil type	Plastic
Size	3/8"-2"	Thread type	BSPP(G) / NPT	Waterproof level	IP65
Medium	Water / Air	Seal Material	NBR	MOQ	15pcs / 30pcs / 100pcs
Pressure	0-1.0Mpa	Customized support	OEM / ODM	Brand Name	YUEER
Temperature	-5-80/150℃	Application	Water treatment, Food machinery, Natural gas, ect.	Warranty	12 months
Place of Origin	CN; ZHE	Certificate	CE, RoHS, CNAS, ilac-MRA, CMA, TUV, A&V, intertek	Structure	Diaphragm
